Induction Cooking I

4/12/2015

0 Comments


We just spent our first full month living in the house and  I'd like to write a bit about our experiences with  induction cook-tops.

Intro
My philosophy is that we will be able to supply our own electricity in the future with photovoltaics but we will never be able to make home-brew propane.  So, neoTerra is all electric.

I've cooked with gas burners my whole life and have never had good experiences with electric cook-tops so this was an area of concern.  Conventional electric cooktops are just not as responsive as gas burners. They are slow to heat up and even slower to cool down so you just don't get the same degree of control that you get with gas.

Anyway, when TW suggested that induction cook-tops are as good as gas burners I was definitely skeptical.

How It Works
Induction 'burners' operate by heating the metal pan directly using magnetic energy to create current and friction within the atoms of the pan itself. The pan must be made of a magnetic material... aluminum pans won't work.

It sounds like science-fiction but it works.  Since the heat is generated directly in the pan it is extremely efficient and the induction unit barely gets hot at all.

For a detailed explanation of how it works click on the image and read the article on Popular Mechanics.

Experiment 1 - A low-cost table top cooker
I decided to give induction cooking a try by purchasing a low cost (under $100) single counter-top 'burner', the Duxtop 8300ST.

This is a very inexpensive unit made of plastic but it works surprisingly well.

At 1800 watts it will boil a pot of water for pasta very quickly and it plugs into a standard wall outlet.

The unit offers ten temperature settings starting at 140F and going up to 464F in 36 degree increments.

It also has ten power levels ranging from 200 to 1800 watts. Unfortunately, the steps are not uniform. It has large increments (300 watts) at the lower steps and small increments (100 watts) in the middle steps.  Consequently, there is a lack of precision/control at the lower temperature and power settings.

The noise, plastic construction and limited range of temperature settings make it unsuitable for serious everyday cooking. That being said, it's high power, light weight and portability make it a good back up when we need an extra burner so I'm keeping it.

Experiment 2 - A commercial table top cooker
The inexpensive Duxtop exceeded my (rather limited) expectations so I decided that the next experiment should be a commercial countertop unit to see what a high quality professional unit can do.
After considerable research I decided on the Vollrath 59500P Mirage Pro.  Like the Duxtop, the Mirage Pro has 1800 watts and plugs into a standard wall outlet but the similarity ends there.

The Vollrath is all metal construction with a stainless steel frame and a ceramic cooking surface.  It has 100 power levels which is ten times what is found on less expensive (and many more expensive) units.

Temperature settings range from 80F - 400F in 10 degree steps. The ability to have precise control at low temperatures is a big advantage for slow cooking and simmering.

Temperature/power level is controlled with a knob so you can turn the power up or down just like a familiar gas burner.  The power level has 100 steps in 1% increments.

This is an expensive unit with a street price of about $450.00 so I had very high expectations. I'm happy to report that this cooker is definitely worth the price.  It is extremely responsive and has greater precision and range than a gas burner. Also, compared to the Duxtop, the Vollrath is whisper quiet.



Conclusion
Based on the positive experience with the Vollrath Mirage Pro, we decided to buy two Vollrath drop-in units for the island.

The drop-in units have the same controls and precision as the table top Mirage Pro but they are only 1400 watts each.   So far, it seems that 1400 watts is sufficient for family cooking, though we do use the more powerful table top unit to boil water for pasta or making large pots of soup.



This is a modular concept where we only have two permanent burners and two portable burners that can be set up where needed.  For example,  I like to set the Mirage Pro next to the sink when I'm making pasta so I don't have to carry the pot of water back and forth to the island.

After a bit of a learning curve I've become a complete induction convert.  It is definitely superior to gas in almost every respect.
0 Comments

Our Island Hideaway

9/7/2014

0 Comments


We don't have a separate dining area so we designed a fairly large island that could seat 5-6 people for casual entertaining.

To cantilever the granite top out from the cabinets we are using counter top support brackets from Centerline Steel.

Since the IKEA cabinets don't have backs, we added a 2x6 knee-wall to support the cantilever brackets.

TW designed a cool hidden compartment where we can store an eight foot folding table inside the island.  We call it the Island Hideaway  :-)


I think we now qualify as full-fledged IKEA Hackers!

0 Comments

Kitchen Countertops

9/6/2014

1 Comment


The countertops, sinks and cooktops are in.  We are ready to finish the plumbing next week.

Installing granite is definately not a DIY project.

It takes a lot of guys to get the granite slabs in place
They have a machine that uses suction to grip the slabs and pull the seams together.

We've been reading a lot about modular kitchens so we are only installing two built in induction 'burners'. These are commercial units from Vollrath.   We also have two portable, counter-top units that we can move around the kitchen or take them out on the patio.
I can't believe they cut the holes on-site with a hand saw
Drop-in units installed
1 Comment

Granite is In - Hearth and Window Seat

9/6/2014

4 Comments

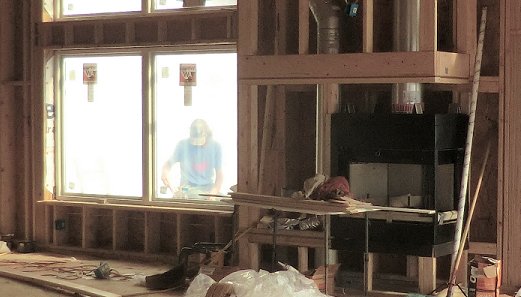

Another major milestone this week... the granite hearth, window seat and countertops are in.   The hearth and window seat were done in Black Pearl.

It's hard to believe that it looked like this just a few months ago...
4 Comments

Extant

9/1/2014

1 Comment


I've been watching "Extant",  the new futuristic Sci-Fi drama on CBS from Steven Spielberg starring Halle Berry as an astronaut who returns to Earth after an extended space mission.  Molly (Halle Berry) comes back to find herself pregnant with an extra-terrestrial life form and her husband built an android son while she was gone   (and I thought I had a bad day!).

But I digress...  The kitchen of the future is a copy of neoTerra (except for the lime-green toaster)!

I wonder if Mr. Spielberg is a fan  :-)

neoTerra

The future in Extant
1 Comment

Industrial Lights - With a Little Help from IKEA

8/16/2014

1 Comment


We wanted to find some minimalist, industrial style pendant lights to hang over the island in the kitchen.  It seemed that everything we liked was just too expensive.
IKEA hacking to the rescue!!

A stainless-steel utensil holder and a pendant cord make a sleek, industrial  fixture for about $20 each.
1 Comment

IKEA Kitchen Installation

7/13/2014

6 Comments


We spent the past week assembling and installing IKEA cabinets in the kitchen.  They're easy to put together and installation isn't too difficult, but there sure are a LOT of them.  I think we went a bit overboard.
It's best to install the upper cabinets first so you don't have the lowers in the way.   We assembled all the uppers and lined them up along the wall.  We wanted the cabinets to line up exactly with the windows, so we started at the center window frame and worked our way toward the corners.

Then we built 2x4 frames as bases for the lower cabinets.  The bases are 3 1/2" smaller than the depth of the cabinets to create a kickspace.

Use a good, straight 2x4 and some quick-clamps to bridge across built-in appliances.  This helps insure that the cabinets on either side are aligned and level.

We hung a few upper doors to see how they look.  The hardware is very sturdy and installs easily.  We will leave the blue proctective film on until the very end.

But the high point of the week is that the beer fridge arrived on Thursday and it fits perfectly!

Almost done.  The kitchen is ready for sinks and counter-tops.   The laundry room is next.
6 Comments

IKEA Has Landed

6/21/2014

0 Comments


A truckload of IKEA Arkurum cabinets arrived yesterday for the kitchen and laundry room.

We'll be spending 4th of July assembling them.  Someday soon we'll be IKEA Hackers
 http://www.ikeahackers.net
0 Comments
